[Ccass]

Click below for a basic education on 64-66 Tripowers. http://www.netreach.net/~perfyrs/tripower.htm
Any additional info to "reply" is welcome.

[Jim Doran]

Here is a pic of 65 with Metal Ram Air pan and power brakes.

- Jim Doran -Some Pics of my 65

[goatseeker]

I have a bunch of "dirty pictures" of my tripower carbs before & during the rebuild including pictures of each carb from all angles sitting on the bench. If anyone is interested I can email them but there's too many to post here.
Chris's pictures of the complete setup on the manifold is about as nice as you can ask for.
I tried to include a couple pictures here of the carbs during disassembly showing how incredibly simple the Rochester 2bbl carbs are inside. Unfortunately, the files are too big but will try to trim them down so I can post them. I'm no tripower expert but I had no trouble rebuilding them using a good quality rebuild kit (from CarbKing) and they actually worked when I put them on my new motor .

http://kurtspontiac.homestead.com/TimSimpson66GTO.html

[Jim Doran]

No for Petesake ! LOL

The advance hose goes to a brass nipple at the rear of the center carb. Here is a pic of the carbs and you can clearly see the nipple. It is available repro from PY

- Jim Doran -Some Pics of my 65

[poncho68sa]

soory so big, i can reduce them if needed

poncho68sa

[vidguy]

I love the idea of technical articles and a repository of Pontiac or general Car knowledge which many people here have lots of!

James Fasso
[email protected]

'67 GTO Conv
"220, 221, whatever it takes."
Micheal Keaton as "Mr. Mom"

[Tripower455]

I was under the impression that the vac advance was connected to the hollow carb stud. That's what I did with my '66.



"I open up three deuces, I'm Never Coming Back!" http://www.tripower455.com

[Jim Doran]

I believe the hollow carb stud is used for the console mounted vacuum gauge when installed.

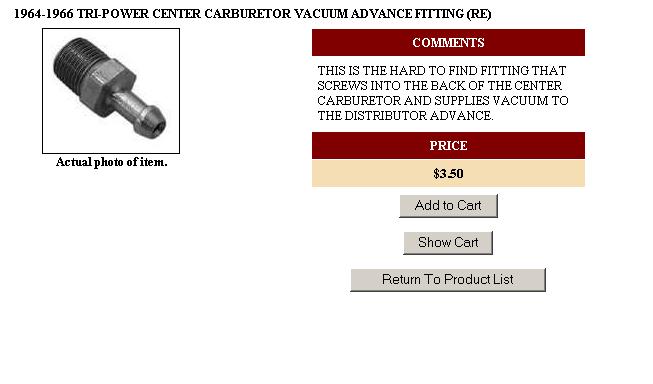

Here is a pic from one of the pontiac restorers online ordering. CCass, my preferred supplier did NOT have a picture;

- Jim Doran -Some Pics of my 65

[goatless]

I'm gonna bet Jim (jrdoran) has some pics to add.

[poncho68sa]

#2


poncho68sa

[goatseeker]

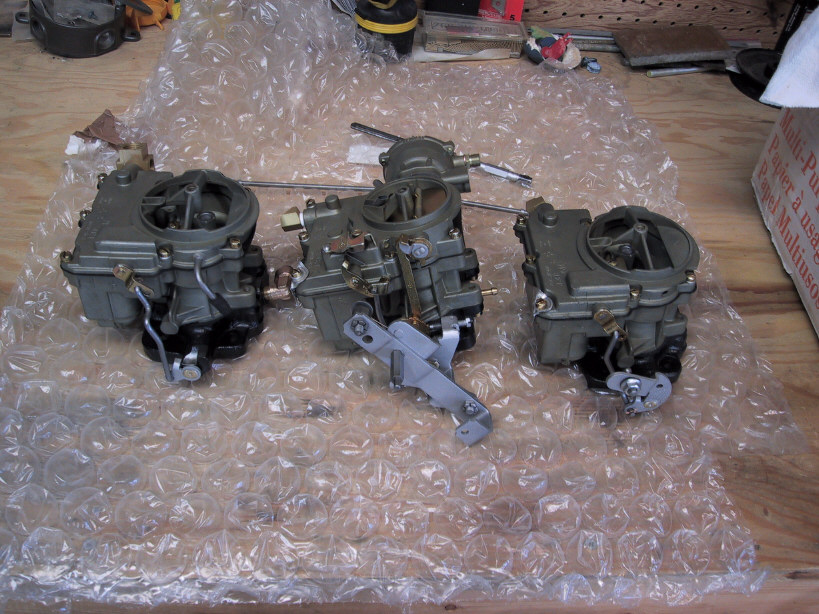

I have a bunch of "dirty pictures" of my tripower carbs before & during the rebuild including pictures of each carb from all angles sitting on the bench. If anyone is interested I can email them but there's too many to post here.
Chris's pictures of the complete setup on the manifold is about as nice as you can ask for.
I have included a couple pictures here of the carbs during disassembly showing how incredibly simple the Rochester 2bbl carbs are inside. I'm no engineer but I had no trouble rebuilding them using a good quality rebuild kit (from CarbKing) and they actually worked when I put them on my new motor .

http://kurtspontiac.homestead.com/TimSimpson66GTO.html

[Jim Doran]

Here is a 65 Passenger side:

- Jim Doran -Some Pics of my 65

[Ccass]

Click below for a basic education on 64-66 Tripowers. http://www.netreach.net/~perfyrs/tripower.htm
Any additional info to "reply" is welcome.

[petesake]

Tim:

Can you send me a picture of the drivers side showing where the vacuum advance hooks up?

Thanks
Peter

[Ccass]

top

---------------------------
Fool around, Get hurt, don't come crying to me.

[Ed Neasham]

Chris,

You're a prince amoung men. I've got a '66 tri-power with no power accessories. Because I've "upgraded" to 4 wheel disks I decided I had to go to an aftermarket power setup. (UPS delivered it today), but I hadn't paid attention on where the vacuum hose went on PB Tri-powers. Checked your posting and there, in the last picture, was the answer for the question I hadn't even asked yet. Do you also moonlight for the Psychic Hotline?

[Ccass]

Anybody have any additional tripower pictures to add to this thread? Any help would be appreciated.

[petesake]

Thanks for the pics guys. It looks like the vacuum advance goes to the front of the rear carb. Is this correct for a 65?

Thanks
Pete

[petesake]

Jim:

I see. Thanks again for the info. Now if i could get enough snow away from the garage I could put it together and try it.

Pete

[goatseeker]

PS: That was a pre-rebuild photo.

http://kurtspontiac.homestead.com/TimSimpson66GTO.html
